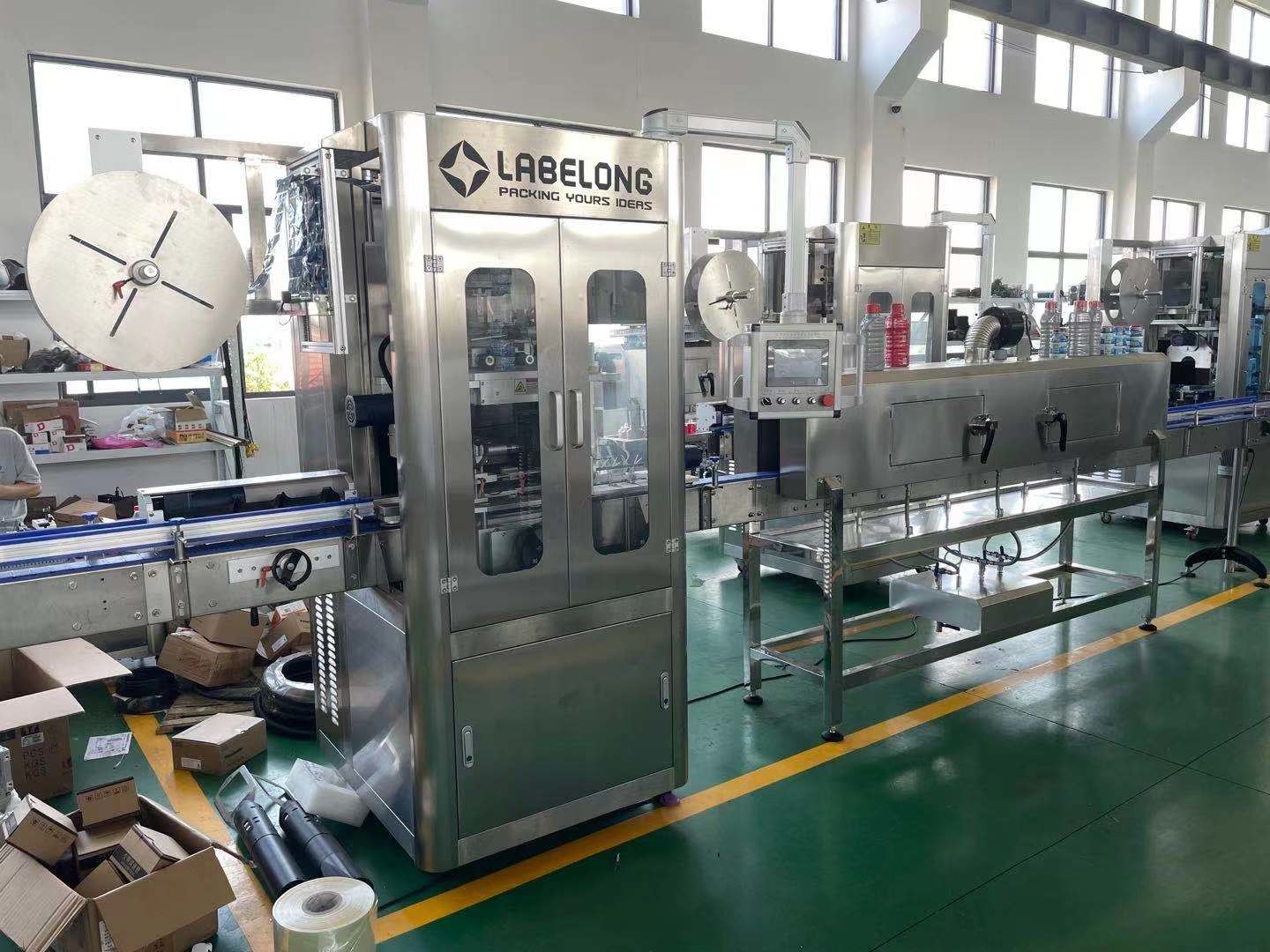

Automatic PVC Plastic 19L 20L 5 Gallon Pure Mineral Drinking Water Bottle Neck Shrink Sleeve Labeling machine
Introduction:
1,The machine is made of stainless steel and high quality of aluminum alloy, the reasonable, intact frame,
2,The feet bolt is not needed, easy to move suitable for different place.
3,The shrinkable film roll with adjustable locking gear, can be adjusted according to different roll 5'-10'
4,The applicable is 5 gallon bottle
5,Without tools, the driven machinery can be adjusted to meet different bottle size
7,Full automatic feeder, the flat shrinking and tension are adjusted together.
8,It is assured to low error that there is inspection of rolling label cut.
9,Particular blade design, blade base can be change by free, changing blade quickly and conveniently.
10,It is easy to change the central clamping device without any tools.
12,The separating bottle screw, oriental belt and conveyor are adjusted synchronal.
13,Adopting ANCHUAN servo motor made in JAPAN and sensitive photo electricity, to insure the precision of cutting label.
14,Stainless steel electric controller, adopting Mitsubishi PLC made in Japan
15,Adopting advanced man-machine automatic controlling technology, main component adopts famous brand.
Parameter
| Model | LBL-5G |
| Speed | MAX 1500BPH |
| Main machine size | 2400*860*1800 L*W*H (mm) |
| Machine body | Stainless steel 304 |
| Electric power | AC3-PHASE 220V/380V |
| Input power of machine | 2.5KW |
| Applicable diameter of bottle | φ25mm –φ125mm |
| Bottle height | Max 350mm special can be designed |
| Height of shrink label | 25 mm ~280mm, special can be designed |
| Thickness of shrink label | 0.035 mm~0.13 mm(PVC PET OPS) |
| Paper inner core | 5”～10” Free adjustment |

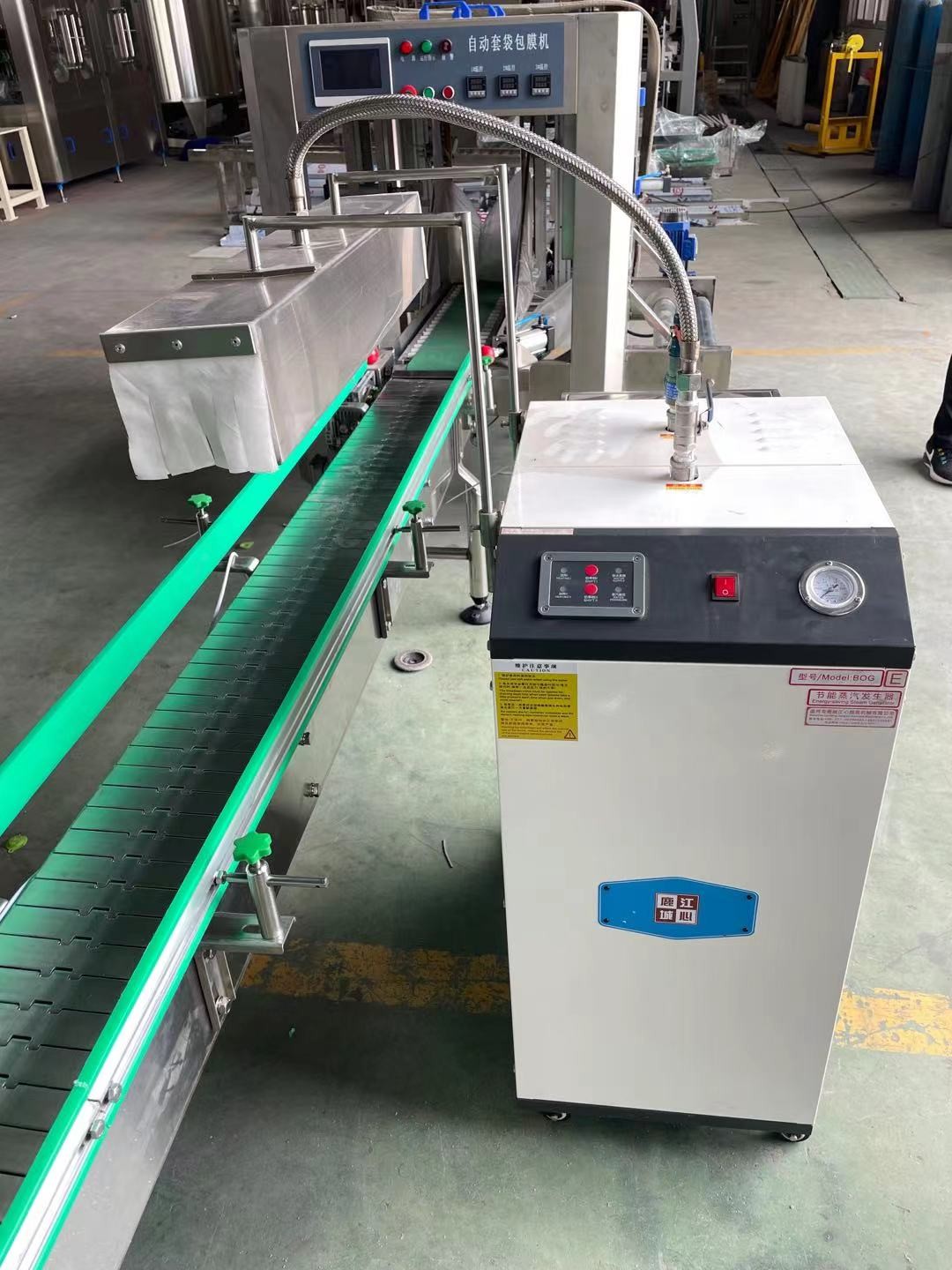

| Shrink tunnel | Electrical / steam |
| Weight | Around 600kg |
Main parts
| No | Name | Brand | Manufacturer |
| 1 | SUS304 stainless steel | | South Korea |
| 2 | motor | TWT | Taiwan |
| 3 | Bearing | HARBIN | China |
| | | | |
| 5 | Stepping Driver | Ertl | Taiwan |
| 6 | PLC controller | Omron | Japan |
| 7 | Inverter | Delta | Taiwan |
| 8 | touch-screen | Omron | Japan |
| 9 | Contactor | Schneider | Franch |
| 10 | Sensor |
